Lab 3: Explore NGINX One Console features

Introduction

In this lab, you’ll explore and use key NGINX One Console features:

You’ll see how each feature helps you monitor and secure your NGINX fleet without writing custom scripts.

By the end of this tutorial, you can:

Make sure you have:

All labs require an F5 Distributed Cloud (XC) account with NGINX One enabled. If you don’t have an account or need to verify access, follow the steps in Lab 1: Before you begin.
All containers from Lab 2: Run workshop components with Docker running and registered
Set these environment variables:
- TOKEN: your data plane key, for example:
  export TOKEN="your-data-plane-key"
- JWT: your NGINX Plus license JWT. Save it as nginx-repo.jwt, then run:
  export JWT=$(cat path/to/nginx-repo.jwt)
- NAME: a unique ID for your workshop (for example, s.jobs):
  export NAME="s.jobs"
Basic NGINX and Linux knowledge

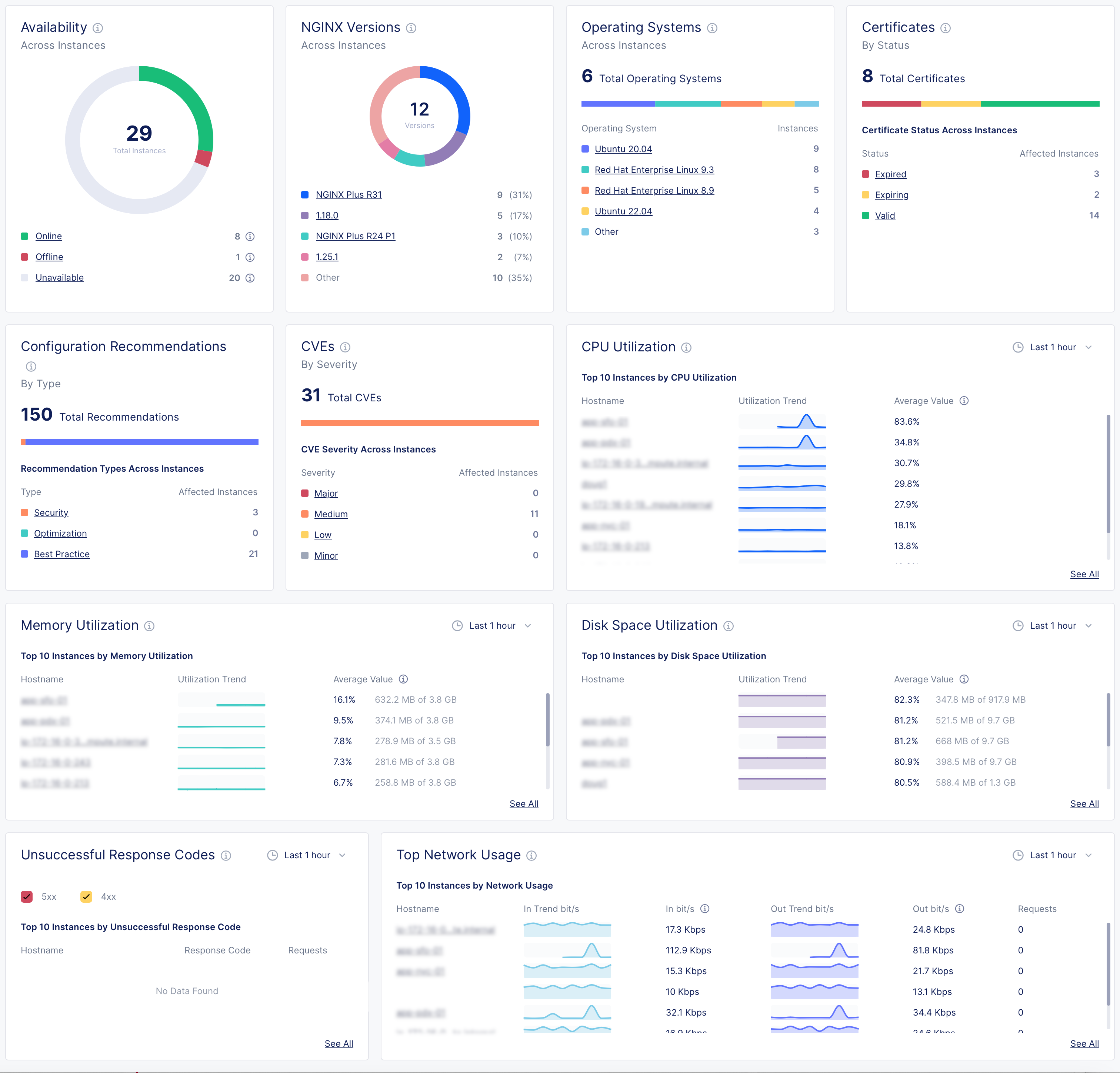

Open NGINX One Console and select Overview. Here are the key metrics and what they mean:

Instance availability
- Online: NGINX Agent and NGINX are connected and working
- Offline: NGINX Agent is running, but NGINX isn’t installed, isn’t running, or can’t connect
- Unavailable: NGINX Agent lost connection or instance was removed
- Unknown: Current state can’t be determined
NGINX versions by instance
See which NGINX Open Source or NGINX Plus versions your instances are running.
Operating systems
View the Linux distributions in use.
Certificates
Monitor SSL certificates, including expiring soon or still valid.
Configuration recommendations
Get suggestions to improve security, performance, and best practices.
CVEs (Common Vulnerabilities and Exposures)
Review threats by severity:
- Major: fix immediately
- Medium: play to fix soon
- Low/Minor: monitor
- Other: any non-standard categories
CPU utilization
Track which instances use the most CPU over time.
Memory utilization
Monitor which instances consume the most RAM.
Disk space utilization
See which instances are nearing full disk capacity.
Unsuccessful response codes
Spot instances with high counts of HTTP 4xx or 5xx errors.
Top network usage
Review inbound and outbound network traffic trends.

Use the CVEs panel to investigate vulnerabilities:

In the CVEs panel, select High to list instances with high-severity issues.
Select your $NAME-plus1 instance to view CVE details, including ID, severity, and description.
Select any CVE ID (for example, CVE-2024-39792) to open its official page with remediation guidance.
Switch to the Security tab to see every CVE NGINX One tracks, with the number of affected instances.
Select View More next to a CVE name for a direct link to the CVE database.

The Certificates panel shows the total number of certificates and their status across all instances.

Note: NGINX One only scans certificates that are part of a running NGINX configuration.

Statuses include:

Steps:

In the Certificates panel, select Expiring to list certificates that will expire soon.
Select your $NAME-oss1 instance and switch to the Unmanaged tab to see certificate name, status, expiration date, and subject.
Select a certificate name (for example, 30-day.crt) to open its details page.
Scroll to Placements to view all instances that use that certificate.

The Configuration Recommendations panel provides suggestions:

In NGINX One Console, go to Overview > Dashboard.
In the Configuration Recommendations panel, select Security to view security-related suggestions.
Select an instance hostname.
Switch to the Configuration tab.
Select a config file (for example, cafe.example.com.conf) to see recommendations by line number.
Select Edit Configuration (pencil icon) to enter edit mode.
Update the configuration to address each recommendation.
Select Next to preview your changes, then select Save and Publish to apply them.
