Get started

The F5 NGINX One Console makes it easy to manage NGINX instances across locations and environments. The console lets you monitor and control your NGINX fleet from one place—you can check configurations, track performance metrics, identify security vulnerabilities, manage SSL certificates, and more.

This guide provides step-by-step instructions to activate and use F5 NGINX One Console. For a list of the latest changes, see our changelog

Benefits and key features

Benefits and key features

NGINX One offers the following key benefits:

• Centralized control: Manage all your NGINX instances from a single console.
• Enhanced monitoring and risk detection: Automatically detect critical vulnerabilities (CVEs), verify SSL certificate statuses, and identify security issues in NGINX configurations.
• Performance optimization: Track your NGINX versions and receive recommendations for tuning your configurations for better performance.
• Graphical Metrics Display: Access a dashboard that shows key metrics for your NGINX instances, including instance availability, version distribution, system health, and utilization trends.
• Real-time alerts: Receive alerts about critical issues.

Before you begin

Before you begin

You need access to F5 Distributed Cloud.

If you already have accessed F5 Distributed Cloud and have NGINX instances available, you can skip these sections and start to Add your NGINX instances to NGINX One. Otherwise, take these steps to “onboard” yourself to NGINX One Console.

Add your NGINX instances to NGINX One

Add your NGINX instances to NGINX One

Add your NGINX instances to NGINX One. You’ll need to create a data plane key and then install NGINX Agent on each instance you want to monitor.

The following instructions include minimal information, sufficient to “get started.” See the following links for detailed instructions:

• Prepare - Create and manage data plane keys
• Add an NGINX instance
• Connect NGINX Plus container images

Generate a data plane key

Generate a data plane key

A data plane key is a security token that ensures only trusted NGINX instances can register and communicate with NGINX One.

To generate a data plane key:

• For a new key: In the Add Instance pane, select Generate Data Plane Key.
• To reuse an existing key: If you already have a data plane key and want to use it again, select Use existing key. Then, enter the key’s value in the Data Plane Key box.

Data plane key guidelines

Data plane keys are displayed only once and cannot be retrieved later. Be sure to copy and store this key securely.

Data plane keys expire after one year. You can change this expiration date later by editing the key.

Revoking a data plane key disconnects all instances that were registered with that key.

Add an instance

Add an instance

Depending on whether this is your first time using NGINX One Console or you’ve used it before, follow the appropriate steps to add an instance:

• For first-time users: On the welcome screen, select Add Instance.
• For returning users: If you’ve added instances previously and want to add more, select Instances on the left menu, then select Add Instance.

Install NGINX Agent

Install NGINX Agent

After entering your data plane key, you’ll see a curl command similar to the one below. Copy and run this command on each NGINX instance to install NGINX Agent. Once installed, NGINX Agent typically registers with NGINX One within a few seconds.

Connecting to NGINX One

NGINX Agent must be able to establish a connection to NGINX One Console’s Agent endpoint (agent.connect.nginx.com). Ensure that any firewall rules you have in place for your NGINX hosts allows network traffic to port 443 for all of the following IPs:

• 3.135.72.139
• 3.133.232.50
• 52.14.85.249

To install NGINX Agent on an NGINX instance:

1. Check if NGINX is running and start it if it’s not:

   First, see if NGINX is running:

   Copy

   sudo systemctl status nginx

   sudo systemctl status nginx

   If the status isn’t Active, go ahead and start NGINX:

   Copy

   sudo systemctl start nginx

   sudo systemctl start nginx

2. Install NGINX Agent:

   Next, use the curl command provided to you to install NGINX Agent:

   Copy

   curl https://agent.connect.nginx.com/nginx-agent/install | DATA_PLANE_KEY="YOUR_DATA_PLANE_KEY" sh -s -- -y

   curl https://agent.connect.nginx.com/nginx-agent/install | DATA_PLANE_KEY="YOUR_DATA_PLANE_KEY" sh -s -- -y

   • Replace YOUR_DATA_PLANE_KEY with your actual data plane key.
   • The -y option automatically confirms any prompts during installation.

The install script writes an nginx-agent.conf file to the /etc/nginx-agent/ directory, with the data plane key that you generated. You can find this information in the nginx-agent.conf file:

command:
  server:
    host: "<NGINX-One-Console-URL>" # Command server host
    port: 443                       # Command server port
  auth:
    token: "<your-data-plane-key-here>" # Authentication token for the command server
  tls:
    skip_verify: false

command:
  server:
    host: "<NGINX-One-Console-URL>" # Command server host
    port: 443                       # Command server port
  auth:
    token: "<your-data-plane-key-here>" # Authentication token for the command server
  tls:
    skip_verify: false

Replace the placeholder values:

• <NGINX-One-Console-URL>: The URL of your NGINX One Console instance, typically https://INSERT_YOUR_TENANT_NAME.console.ves.volterra.io/ .
• <your-data-plane-key-here>: Your Data Plane key.

Note: NGINX Agent poll interval
We recommend keeping dataplane.status.poll_interval between 30s and 60s in the NGINX Agent config (/etc/nginx-agent/nginx-agent.conf). If the interval is set above 60s, NGINX One Console may report incorrect instance statuses.

---

The NGINX One Console dashboard relies on APIs for NGINX Plus and NGINX Open Source Stub Status to report traffic and system metrics. The following sections show you how to enable those metrics.

Enable NGINX Plus API

Enable NGINX Plus API

To collect comprehensive metrics for NGINX Plus, including bytes streamed, information about upstream systems and caches, and counts of all HTTP status codes, add the following to your NGINX Plus configuration file, for example /etc/nginx/nginx.conf or an included file:

nginx

Copy

# This block enables the NGINX Plus API and dashboard
# For configuration and security recommendations, see:
# https://docs.nginx.com/nginx/admin-guide/monitoring/live-activity-monitoring/#configuring-the-api
server {
    # Change the listen port if 9000 conflicts
    # (8080 is the conventional API port)
    listen 9000;

    location /api/ {
        # To restrict write methods (POST, PATCH, DELETE), uncomment:
        # limit_except GET {
        #     auth_basic "NGINX Plus API";
        #     auth_basic_user_file /path/to/passwd/file;
        # }

        # Enable API in write mode
        api write=on;

        # To restrict access by network, uncomment and set your network:
        # allow 192.0.2.0/24   # replace with your network
        # deny  all;
    }

    # Serve the built-in dashboard at /dashboard.html
    location = /dashboard.html {
        root /usr/share/nginx/html;
    }
}

# This block enables the NGINX Plus API and dashboard
# For configuration and security recommendations, see:
# https://docs.nginx.com/nginx/admin-guide/monitoring/live-activity-monitoring/#configuring-the-api
server {
    # Change the listen port if 9000 conflicts
    # (8080 is the conventional API port)
    listen 9000;

    location /api/ {
        # To restrict write methods (POST, PATCH, DELETE), uncomment:
        # limit_except GET {
        #     auth_basic "NGINX Plus API";
        #     auth_basic_user_file /path/to/passwd/file;
        # }

        # Enable API in write mode
        api write=on;

        # To restrict access by network, uncomment and set your network:
        # allow 192.0.2.0/24   # replace with your network
        # deny  all;
    }

    # Serve the built-in dashboard at /dashboard.html
    location = /dashboard.html {
        root /usr/share/nginx/html;
    }
}

Security tip

• By default, all clients can call the API.
• To limit who can access the API, uncomment the allow and deny lines under api write=on and replace the example CIDR with your trusted network.
• To restrict write methods (POST, PATCH, DELETE), uncomment and configure the limit_except GET block and set up HTTP basic authentication.

For more details, see the NGINX Plus API module documentation and Configuring the NGINX Plus API.

Enable NGINX Open Source Stub Status API

Enable NGINX Open Source Stub Status API

To collect basic metrics about server activity for NGINX Open Source, add the following to your NGINX configuration file:

nginx

Copy

server {
    listen 127.0.0.1:8080;
    location /api {
        stub_status;
        allow 127.0.0.1;
        deny all;
    }
}

server {
    listen 127.0.0.1:8080;
    location /api {
        stub_status;
        allow 127.0.0.1;
        deny all;
    }
}

This configuration:

• Enables the stub status API.
• Allows requests only from 127.0.0.1 (localhost).
• Blocks all other requests for security.

For more details, see the NGINX Stub Status module documentation.

After saving the changes, reload NGINX to apply the new configuration:

Copy

nginx -s reload

nginx -s reload

---

View instance metrics with the NGINX One dashboard

View instance metrics with the NGINX One dashboard

After connecting your NGINX instances to NGINX One, you can monitor their performance and health. The NGINX One dashboard is designed for this purpose, offering an easy-to-use interface.

Log in to NGINX One

Log in to NGINX One

1. Log in to F5 Distributed Console.
2. Select NGINX One > Visit Service.

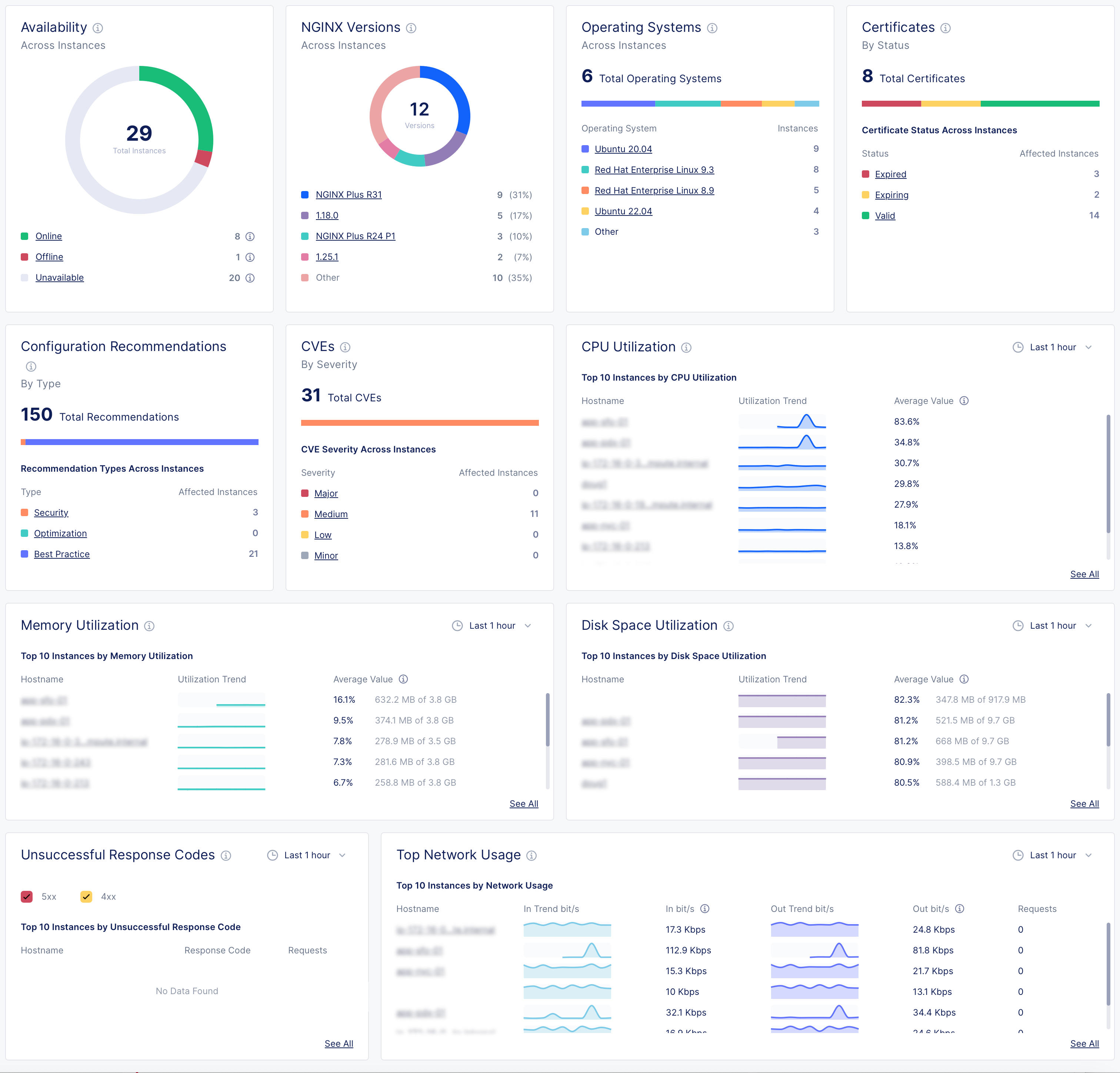

Overview of the NGINX One dashboard

Overview of the NGINX One dashboard

Navigating the dashboard:

• Drill down into specifics: For in-depth information on a specific metric, like expiring certificates, click on the relevant link in the metric’s card to go to a detailed overview page.
• Refine metric timeframe: Metrics show the last hour’s data by default. To view data from a different period, select the time interval you want from the drop-down menu.

NGINX One dashboard metrics

Metric	Description	Details
Instance availability	Understand the operational status of your NGINX instances.	- Online: The NGINX instance is actively connected and functioning properly. - Offline: NGINX Agent is connected but the NGINX instance isn’t running, isn’t installed, or can’t communicate with NGINX Agent. - Unavailable: The connection between NGINX Agent and NGINX One has been lost or the instance has been decommissioned. - Unknown: The current state can’t be determined at the moment.
NGINX versions by instance	See which NGINX versions are in use across your instances.
Operating systems	Find out which operating systems your instances are running on.
Certificates	Monitor the status of your SSL certificates to know which are expiring soon and which are still valid.
Config recommendations	Get configuration recommendations to optimize your instances’ settings.
CVEs (Common Vulnerabilities and Exposures)	Evaluate the severity and number of potential security threats in your instances.	- Major: Indicates a high-severity threat that needs immediate attention. - Medium: Implies a moderate threat level. - Minor and Low: Represent less critical issues that still require monitoring. - Other: Encompasses any threats that don’t fit the standard categories.
CPU utilization	Track CPU usage trends and pinpoint instances with high CPU demand.
Memory utilization	Watch memory usage patterns to identify instances using significant memory.
Disk space utilization	Monitor how much disk space your instances are using and identify those nearing capacity.
Unsuccessful response codes	Look for instances with a high number of HTTP server errors and investigate their error codes.
Top network usage	Review the network usage and bandwidth consumption of your instances.

NGINX One dashboard metrics

Metric	Description	Details
Instance availability	Understand the operational status of your NGINX instances.	- Online: The NGINX instance is actively connected and functioning properly. - Offline: NGINX Agent is connected but the NGINX instance isn’t running, isn’t installed, or can’t communicate with NGINX Agent. - Unavailable: The connection between NGINX Agent and NGINX One has been lost or the instance has been decommissioned. - Unknown: The current state can’t be determined at the moment.
NGINX versions by instance	See which NGINX versions are in use across your instances.
Operating systems	Find out which operating systems your instances are running on.
Certificates	Monitor the status of your SSL certificates to know which are expiring soon and which are still valid.
Config recommendations	Get configuration recommendations to optimize your instances’ settings.
CVEs (Common Vulnerabilities and Exposures)	Evaluate the severity and number of potential security threats in your instances.	- Major: Indicates a high-severity threat that needs immediate attention. - Medium: Implies a moderate threat level. - Minor and Low: Represent less critical issues that still require monitoring. - Other: Encompasses any threats that don’t fit the standard categories.
CPU utilization	Track CPU usage trends and pinpoint instances with high CPU demand.
Memory utilization	Watch memory usage patterns to identify instances using significant memory.
Disk space utilization	Monitor how much disk space your instances are using and identify those nearing capacity.
Unsuccessful response codes	Look for instances with a high number of HTTP server errors and investigate their error codes.
Top network usage	Review the network usage and bandwidth consumption of your instances.

---
